Ultimaker Metal Expansion Kit

Name: Ultimaker Metal Expansion Kit
Brand: UltiMaker
Price: 1263.9 AUD

Product form

Ultimaker Metal Expansion Kit

Complex stainless steel parts made simpler. Explore a new range of metal 3D printing applications by upgrading with the Metal Expansion Kit. Its easy workflow makes creating stainless steel parts easier, more efficient, and affordable. Includes Ultrafuse® 17-4PH and Support Layer materials.

$1,263.90 Incl. GST

Buying a full system? Request a bundled quote.

Request a Quote

Technical Articles

Product Data Sheet

Key Features

• A seamless desktop metal FFF workflow
• Print high-quality stainless steel parts
• Create small series affordably
• Flexibly switch between plastics and metal

Flexibility

UltiMaker's new Metal Expansion Kit gives you the flexibly to switch between two materials. With the Kit added to your printer, it means your printer is now capable of printing both plastic and metal parts. Easily and efficiently switch between the two by changing print cores and expanding the application range of your UltiMaker 3D printer to create parts with more demanding properties.

Ease of Use

Metal 3D printing is easier when everything's taken care of. The UltiMaker Metal Expansion Kit provides software optimisations, access to post-processing services, extensive e-learning modules, and more. These ensure you can quickly go from CAD design to metal part with minimum hassle and maximum confidence.

Ultrafuse® Materials

Discover the excellence of BASF Forward AM Ultrafuse® 17-4 PH, the optimal choice for high-strength and rigid stainless steel components. Engineered to endure even the most challenging operational environments, this stainless steel variant boasts exceptional resistance to both corrosion and heat.

Ultrafuse® 17-4 PH material properties

• Print Core: CC | DD
• Tensile strength: 990 MPa
• Thermal resistance: 315°C
• Spool weight: 1000 g
• Filament diameter: 2.85 mm

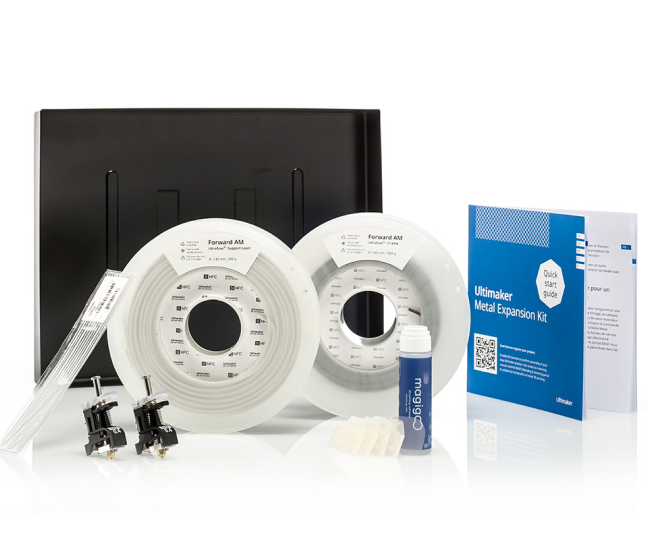

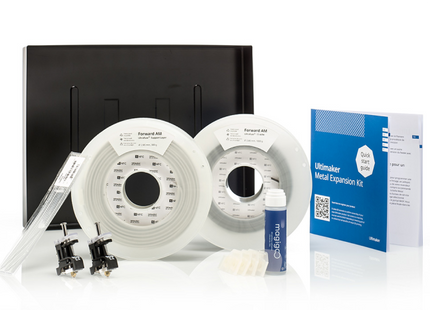

The Ultimaker Metal Expansion Kit includes:

• BASF Forward AM Ultrafuse® 17-4 PH (1 kg)
• BASF Forward AM Ultrafuse® Support Layer (300 g)²
• Packaging for green parts and a voucher toward post-processing*
• Ultimaker Print Core CC 0.4
• Ultimaker Print Core DD 0.4³
• Magigoo Pro Metal (50 ml) adhesive
• Free Ultimaker Cura software with optimised metal part slicing features
• Access to exclusive metal FFF e-learning content on Ultimaker Academy

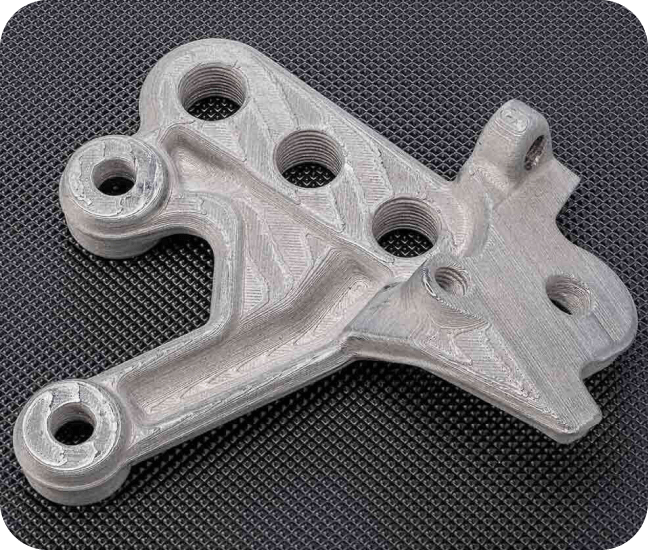

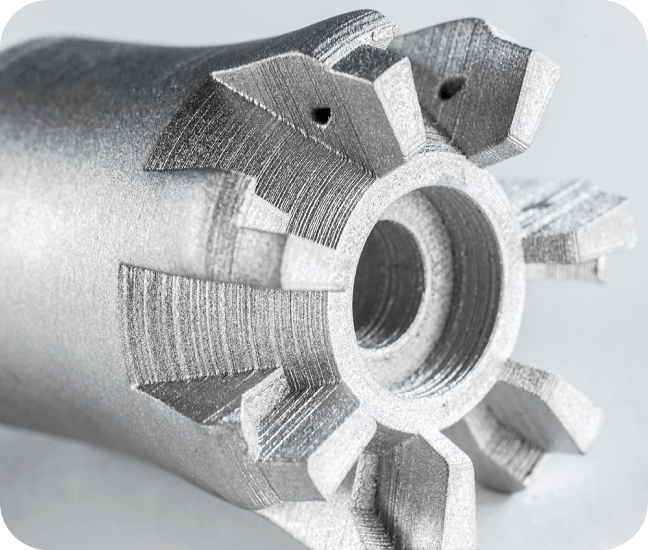

Freedom to Design High-Quality Steel Parts

17-4 PH stainless steel plus a metal-optimised support material² offers the freedom to create strong parts with complex geometries. Plus, Ultimaker Cura includes metal FFF features to give you full control and ensure a high-quality metal part.

Metal Parts Up to 90% Cheaper

The Ultimaker S Series printers low total cost of ownership and small size makes it easy to adopt and scale an affordable metal 3D printing solution. Compared to CNC and other additive methods, you can save up to 90% creating the metal tools and parts you need.

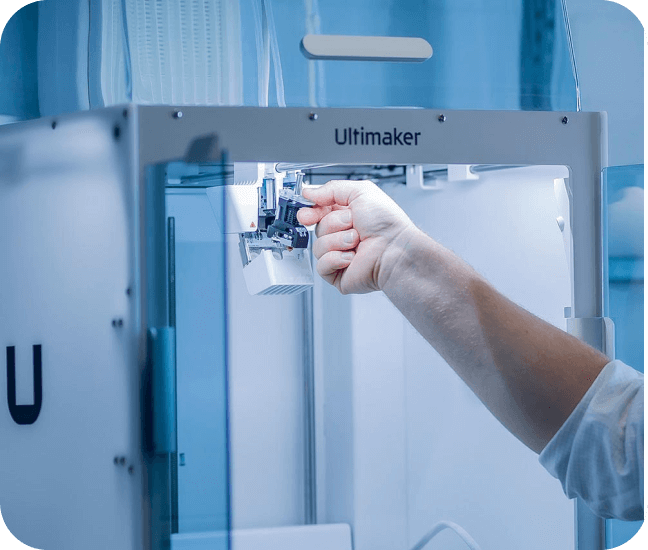

Plastic or Metal? You Decide

Being able to 3D print either plastic or metal on an Ultimaker printer opens up a wider range of potential applications. And because you can quickly and easily switch between materials by changing out the print cores, your printer becomes even more versatile.
