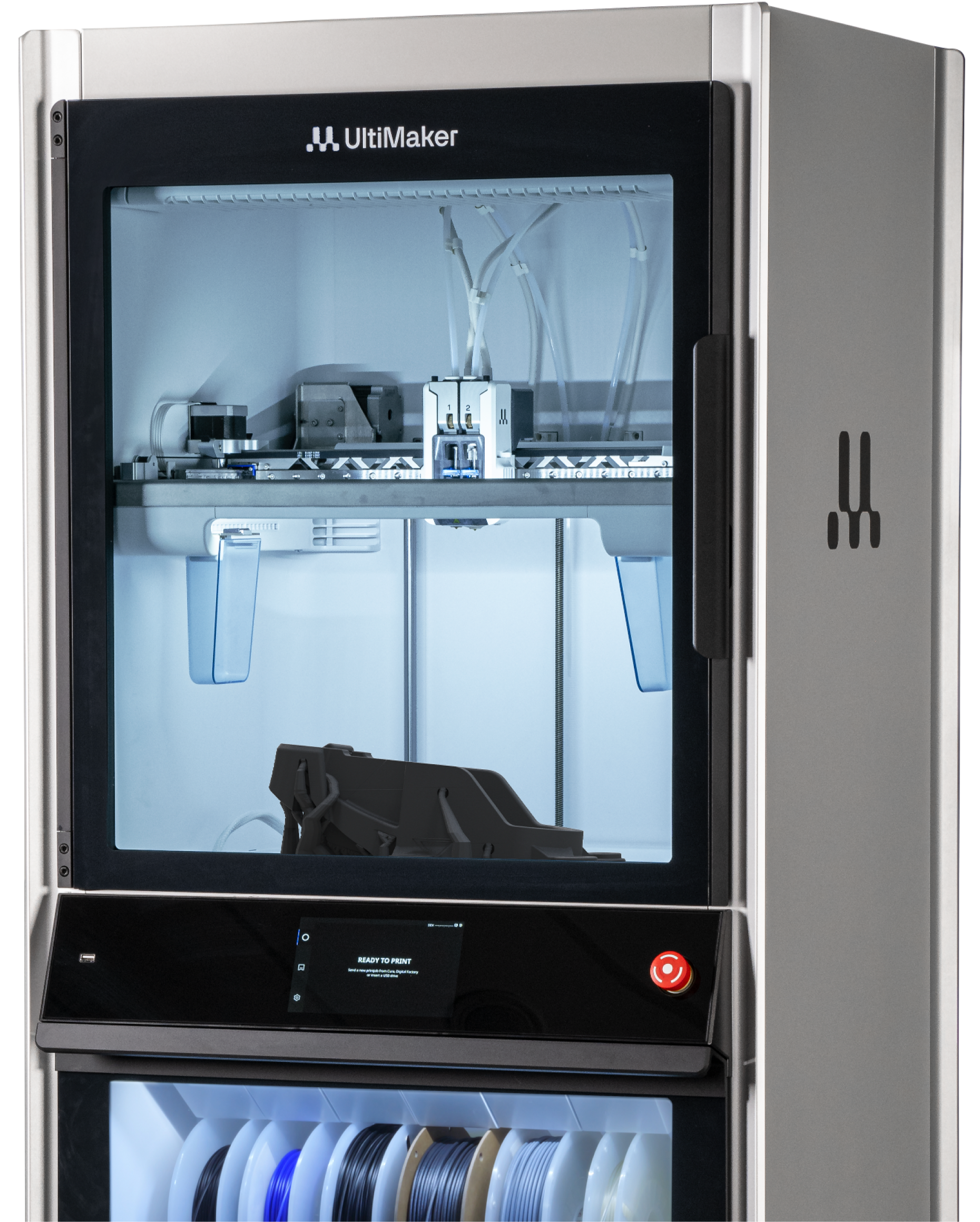

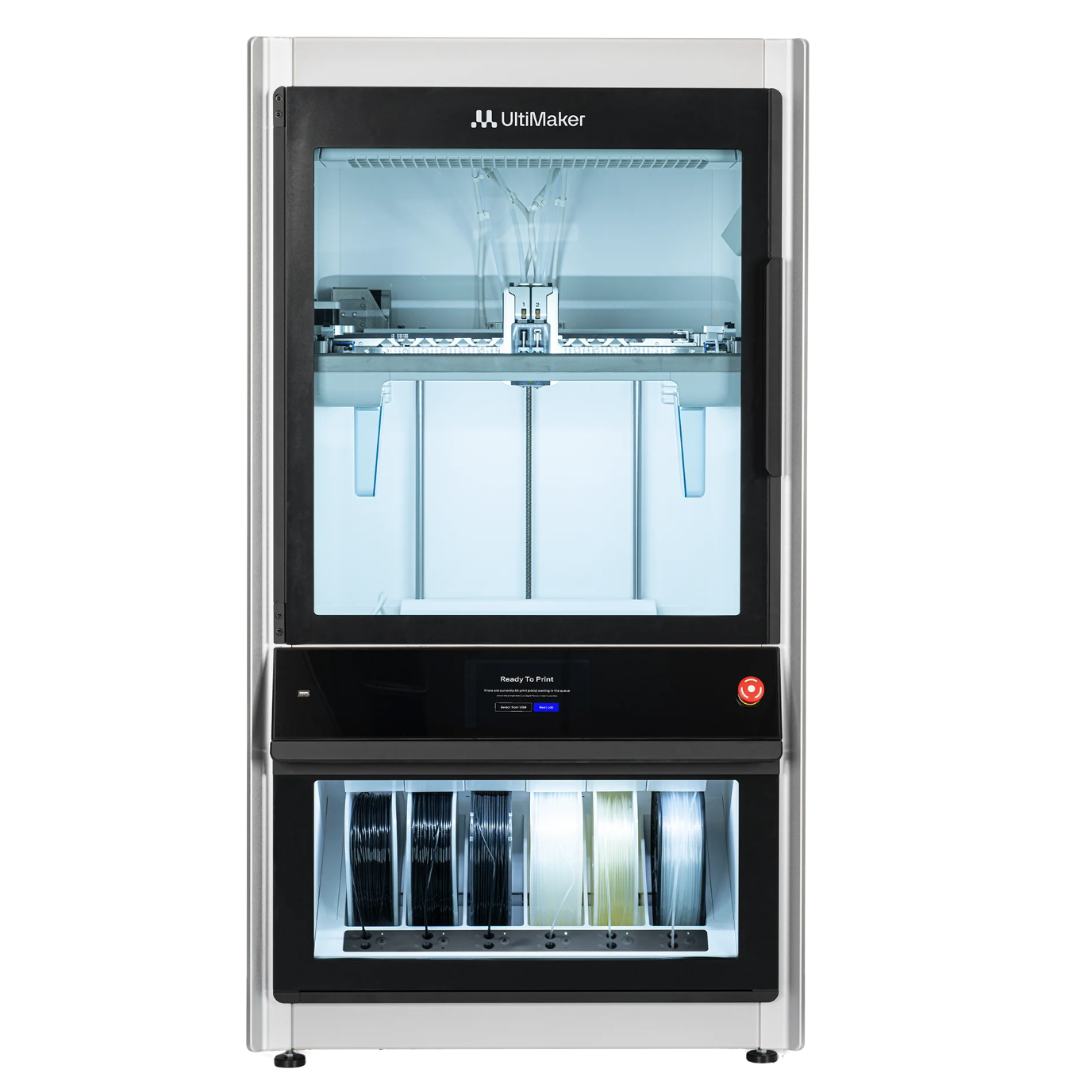

UltiMaker Factor 4

    UltiMaker Factor 4

      Product form

      UltiMaker Factor 4, Ultimaker's new industrial-grade 3D printer, streamlines production, simplifies processes, and keeps operations running. With support for engineering materials, direct dual extrusion, onboard print process reporting, and many more innovations, it achieves unrivaled predictability and minimal variance.

      $49,450.50 Incl. GST

      Prices shown are a starting point. Most systems are tailored, book a call to get an exact quote for your needs.

      Request a Quote
        Read Brochure

        Technical Articles

        The Ideal Platform for Prototyping

        Explore the UltiMaker S6 for flexible prototyping and low-volume production within the same ecosystem.

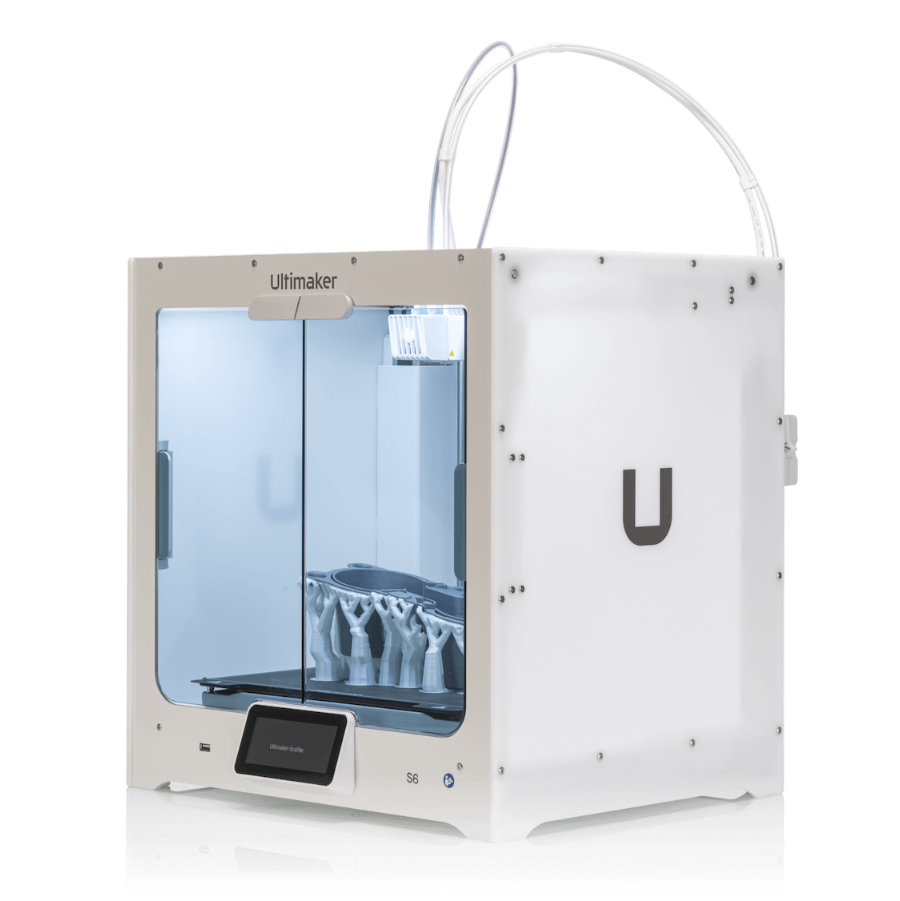

        UltiMaker S6 3D Printer

        UltiMaker S6 3D Printer

        $14,975.00

        Learn more

        Built for the Factory Floor

        Factor 4 elevates manufacturing with its triple-insulated build chamber and direct dual extrusion. The automated material handling system maintains filament quality.

        The robust, temperature-controlled design ensures consistent production output also on complex and challenging designs.

        Reliability, Repeatability and Validation

        Achieve the highest print accuracy of any UltiMaker printer – even at high resolution on small design features.

        These will achieve a dimensional accuracy of ± 0.2 mm ± 0.2% of feature nominal length over the full build plate and across multiple printers.

        Achieve More

        The Factor 4 excels at quickly switching from 3D printing highly flexible materials all the way to strong composites, like UltiMaker PPS CF.

        Its H-bridge gantry and direct drive head enable rapid dual material printing.

        High Quality, Every Time

        Factor 4 makes it possible to additively produce & deploy structural integrity verified parts across different locations.

        The low variance, less than 10%, in extrusion rate and mechanical properties batch after batch, part after part is a combination of the H-bridge gantry, closed loop feed control, and uniformly controlled build plate temperatures – with a maximum variation of 2 °C across the X and Y axes.

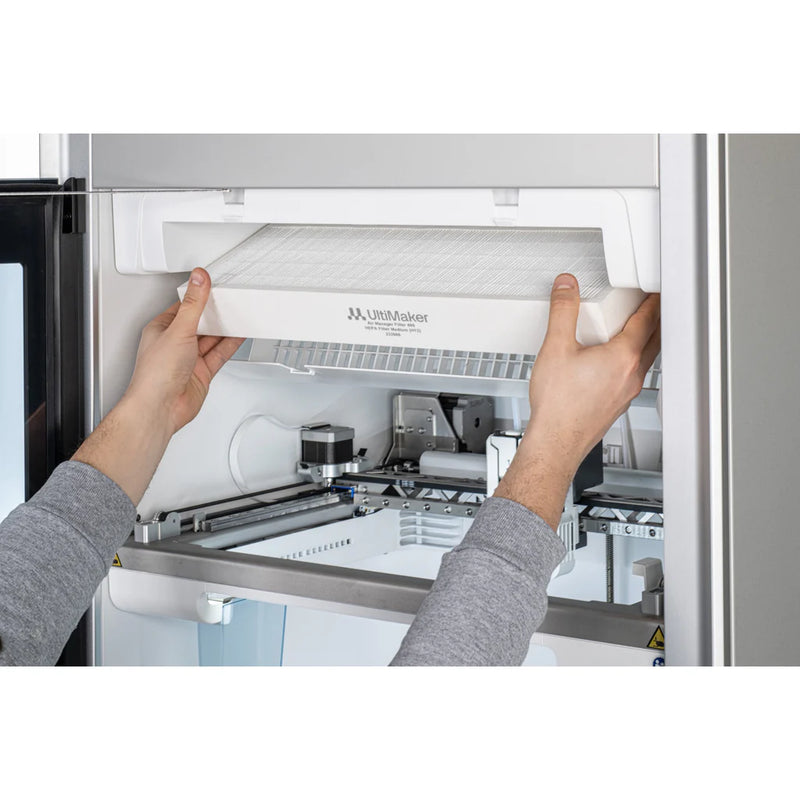

        Integrated HEPA Filter

        Independently tested to remove up to 95% of ultra-fine particles to increase air quality peace of mind. The fully enclosed build chamber also boosts print quality.

        A Future-Proof Investment

        Regular updates ensure that your Factor 4 will evolve over time – far beyond the 12 to 18 months it will take to achieve return on investment. The 3D printer's modular build allows our global support network to quickly replace parts, minimising downtime.

        Included Components

        • UltiMaker Factor 4 3D Printer
        • Dual direct extrusion print head
        • 2 x AA Print Cores with swappable capabilities
        • PEI-coated flexible steel build plate
        • Replaceable HEPA H13 filter
        • Access to UltiMaker Cura
        • Access to UltiMaker Digital Factory

        Build and Print System

        • Print technology: Fused Deposition Modeling (FDM)

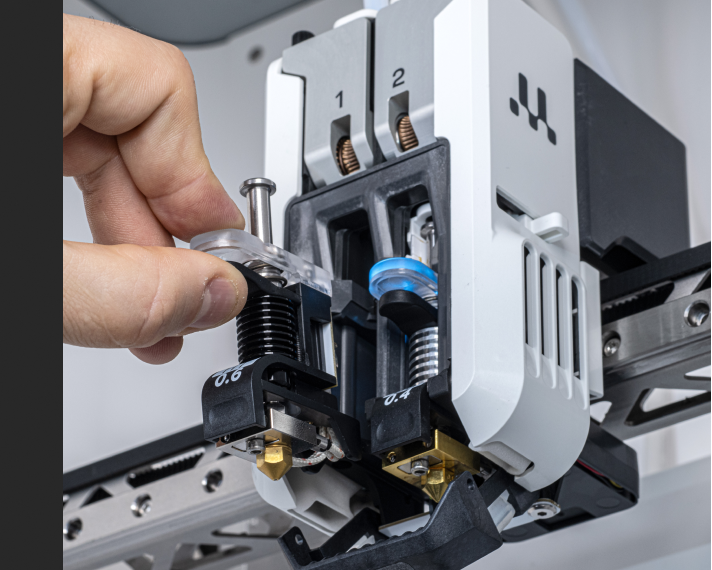

        • Print head: Dual extrusion print head with auto-nozzle lifting system, swappable print cores and flood detection
        • Feeder type: Dual extrusion, direct drive print head
        • Print core replacement: Swappable print cores
        • Compatible filament diameter: 2.85 mm
        • Nozzle diameters: 0.25 mm, 0.4 mm, 0.6 mm, 0.8 mm
        • Layer resolution: 60 – 400 microns (depending on print core nozzle size and selected print profile)
        • XYZ resolution: 6.25, 7.8, 2.5 microns
        • Nozzle temperature range: 180 – 340 °C

        Build Volume and Build Plate

        • Build volume (XYZ):
        330 × 240 × 300 mm
        (13 × 9.4 × 11.8 inches)
        • Build plate: PEI-coated flexible steel build plate

        Operation Parameters

        • Maximum power output: 600 W
        • Operating ambient temperature: 18 – 30 °C (64 – 86 °F)
        • Operating humidity: 30 – 70 % RH
        • Non-operating temperature: 5 – 40 °C (41 – 104 °F)
        • Non-operating humidity: 20 – 90 % RH
        • Filter technology: Replaceable HEPA H13 filter
        • Safety features:
        – Red Stop Button for immediate motion and heat source shutdown
        – Open Door Sensor for motion and extrusion pausing

        Dimensions and Weight

        • Assembled dimensions:
        695 × 605 × 1287 mm
        (27.5 × 24 × 51 inches)
        • Weight: 120 kg (265 lbs)

        Hardware, Software and Ecosystem

        • Display: 7 inch interactive touchscreen (1024 × 600 px)
        • Supplied software:
        – UltiMaker Cura
        – UltiMaker Digital Factory
        • Supported operating systems: macOS, Windows and Linux
        • Plugin integration:
        – SolidWorks
        – Siemens NX
        – Autodesk Inventor
        • Supported file types:
        UltiMaker Cura: STL, OBJ, X3D, 3MF, BMP, GIF, JPG, PNG
        Printable formats: G, GCODE, GCODE.gz, UFP
        • File transfer: Wi-Fi (2.4 and 5 GHz), Ethernet, USB
        • Warranty: 12 month limited warranty
        • Safety and compliance information available via UltiMaker official documentation

        Compatible Materials

        View All Materials

        View All Materials

        Hassle Free 3D Printing

        Industry leading 95% print completion success rate. (success rate tested using UltiMaker PLA,
        Tough PLA, PETG, PET CF, and PPS CF.)

        High-Temperature Capabilities

        Up to 340 °C on its print cores with the new UltiMaker HT Core. 70 °C on the print chamber and 120 °C on its heated bed.

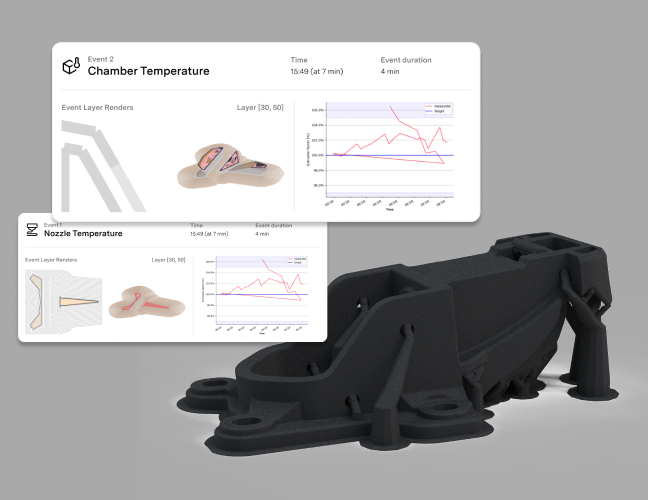

        Onboard Structural Integrity Validation

        After every print job, receive an in-depth report on extrusion parameters deviations from nominal values, their locations, and their severity in the 3D model.

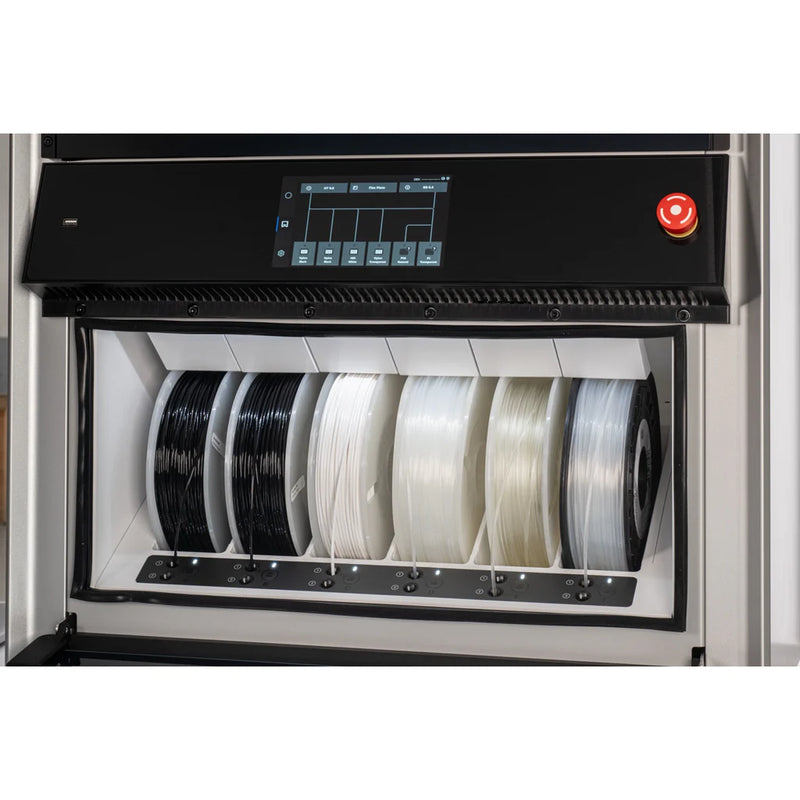

        Automated Material Handling with Low Humidity Storage

        Automatic pre-loading and spool switching (up to 6) with RH < 15% on any external conditions.

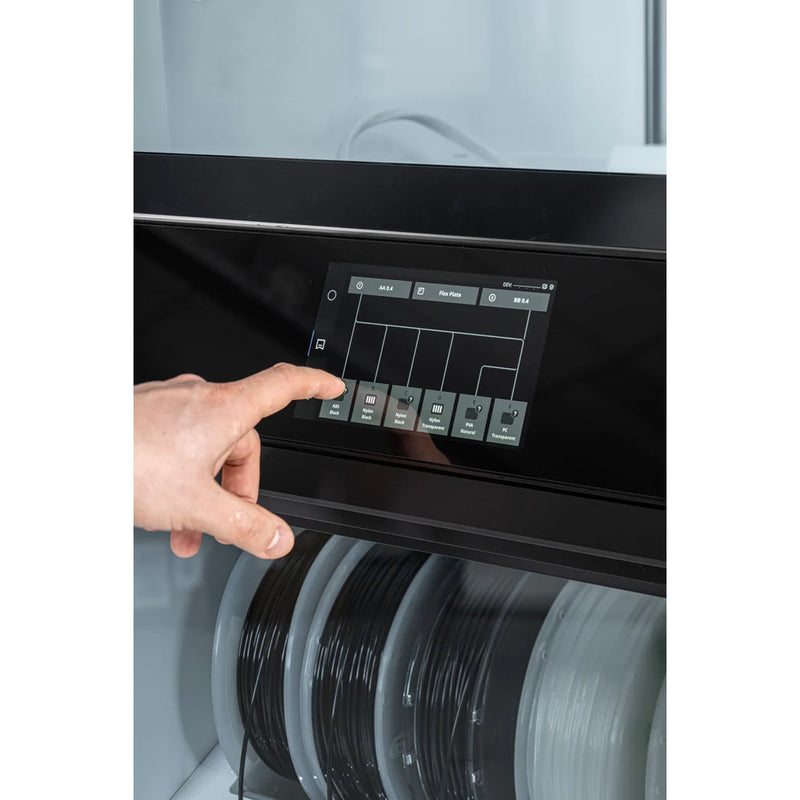

        7-Inch Capacitive Touchscreen

        Mounted higher to give a better view of the first layers when remote monitoring. Monitor your print in high resolution remotely via UltiMaker Digital Factory.

        Always Up to Date

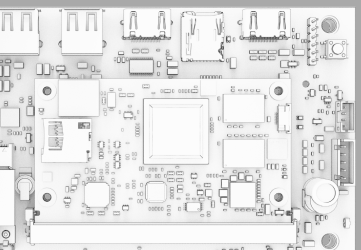

        With dual onboard processors, there is plenty of computing headroom for planned and even unplanned future updates.
        <div class="metafield-rich_text_field"><p>&quot;The end goal is that the capability supports the integrated force, and if people on a ship have a problem, they can just go below and print something. It provides a chance to show multinational interoperability, that they can rely on us to provide them with last-second engineering controls.” </p><p></p></div>

        "The end goal is that the capability supports the integrated force, and if people on a ship have a problem, they can just go below and print something. It provides a chance to show multinational interoperability, that they can rely on us to provide them with last-second engineering controls.”

        - Brendan Funnell
        Deputy Director of Innovation and Continuous Improvement at the Navy Centre for Innovation

        Read Case Study

        <div class="metafield-rich_text_field"><p>&quot;FDM allows for affordable production and better sustainability compared to powder or resin-based methods, especially for flexible items. Our materials can be fully recycled or compostable, which is important for us… Thanks to its multi-material printing option for flexible materials, we can print an entire shoe using the Factor 4… We’ve always valued how easy UltiMaker is to use - especially how effortlessly the print core can be changed. Another reason we want to keep working with UltiMaker is Digital Factory. The software integrates seamlessly with our workflow.”</p></div>

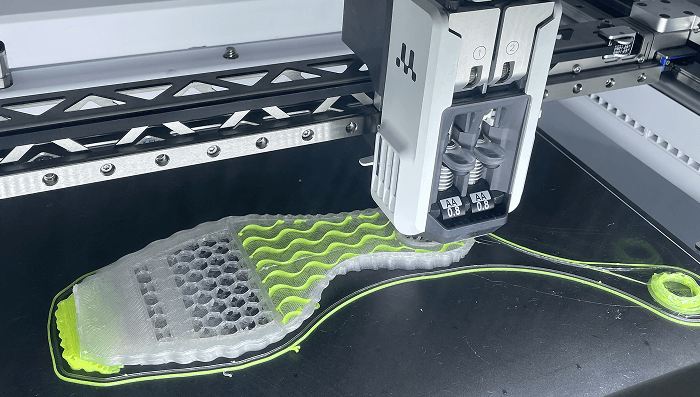

        "FDM allows for affordable production and better sustainability compared to powder or resin-based methods, especially for flexible items. Our materials can be fully recycled or compostable, which is important for us… Thanks to its multi-material printing option for flexible materials, we can print an entire shoe using the Factor 4… We’ve always valued how easy UltiMaker is to use - especially how effortlessly the print core can be changed. Another reason we want to keep working with UltiMaker is Digital Factory. The software integrates seamlessly with our workflow.”

        - Nicoline Van Enter
        CEO at Footwearology

        Read Case Study

        <div class="metafield-rich_text_field"><p>&quot;If you compared to conventional issues, (when we needed a new tool, jig, or gauge) we [now] save around 90% in cost reduction and 90% in delivery time to the project... When regarding return on investment, we had the ROI paid off in 2 months. That&#39;s a very low-cost solution with very fast return on investment... The benefits are improved ergonomics, productivity and operator satisfaction, and in the end we have very good feedback from the operators working on the line&quot;</p></div>

        "If you compared to conventional issues, (when we needed a new tool, jig, or gauge) we [now] save around 90% in cost reduction and 90% in delivery time to the project... When regarding return on investment, we had the ROI paid off in 2 months. That's a very low-cost solution with very fast return on investment... The benefits are improved ergonomics, productivity and operator satisfaction, and in the end we have very good feedback from the operators working on the line"

        - Luis Pascoa
        Pilot Plant Manager at Volkswagen Autoeuropa

        Read Case Study Watch Video
