Ultimaker Print Core CC

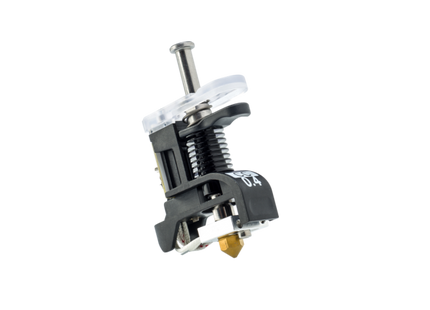

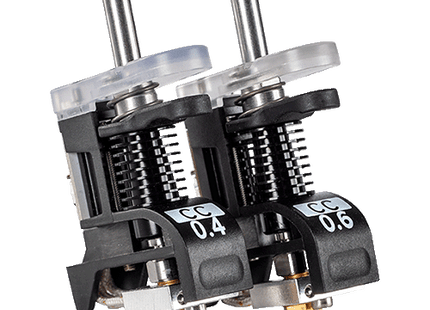

Name: Ultimaker Print Core CC
Brand: UltiMaker
Price: 643.69 AUD

Product form

Ultimaker Print Core CC

The Ultimaker Print Core CC is an interchangeable, tool-free hot end designed for printing abrasive composite materials, featuring a hardened nozzle for improved wear resistance and long-term dimensional accuracy. Its quick-swap design minimises downtime and allows users to efficiently switch between materials or nozzle sizes to suit different applications.

Type

0.6 mm
0.4 mm

$643.69 Incl. GST

Printing Standard Materials?

Switch to a standard build core for everyday materials and general printing.

Ultimaker Print Core AA

$217.94

Learn more

Description

A print core is a compact hot end, which can be exchanged without any tools. The print cores contain the nozzle, heater block, heater and sensor, and a small EEPROM chip. The filament is heated up inside the print core and extrudes from the nozzle. There are several types of print cores, which may look a little different, but all contain the same kinds of components.

Compatible Materials

The CC print core is designed for use with composite materials, such as UltiMaker PET CF and Nylon CF Slide.

Compatible Printers

Current Models:

0.6 mm Application

The UltiMaker CC 0.6mm print core is tailored for composite materials, offering a perfect balance between printing speed and detail for great results.

0.4 mm Application

Optimised for composite materials, the CC 0.4 print core features a 0.4mm nozzle designed for high-precision print jobs, enabling detailed and complex designs with ease.

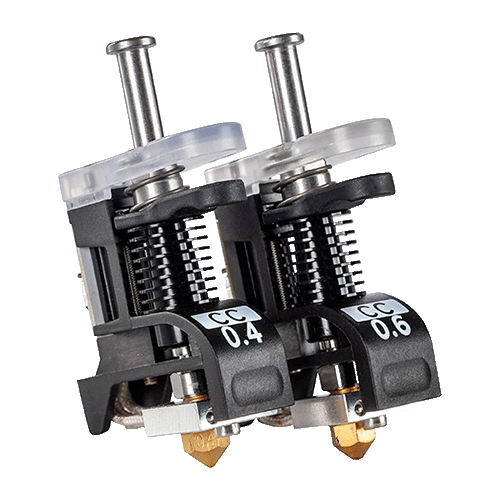

What is a Print Core?

Barrier tube. This part guides the filament from the end of the Bowden tube into the hot end.
Top bracket. You hold this part when inserting or removing the core. It is transparent to show the LED to indicate the core's status.
PCB. This board connects to the PCB inside the print head. The EEPROM chip contains information about the print core type, nozzle size, and printing hours.
PT100. (right) This sensor registers the nozzle temperature.
Heater cartridge. (left) Heats up the nozzle.
Spring. This spring compresses to allow nozzle lifting and exchanging the print core.
Lever. Squeeze this lever upward to compress the spring when removing or inserting the print core.
Heat sink. The ridges help cool the print core, to prevent the heat from traveling too far upward.
Bracket. The 'body' of the core. The type and nozzle size are printed on the front.
Heat break. This thin aluminum part prevents the heat from the nozzle from traveling upward.
Heater block. This part is heated up during printing to the material-specific temperature.
Nozzle. Material extrudes from the nozzle. Different types and sizes are available.
