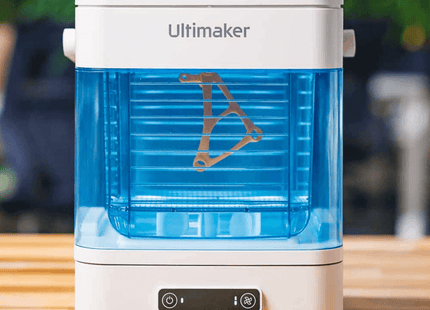

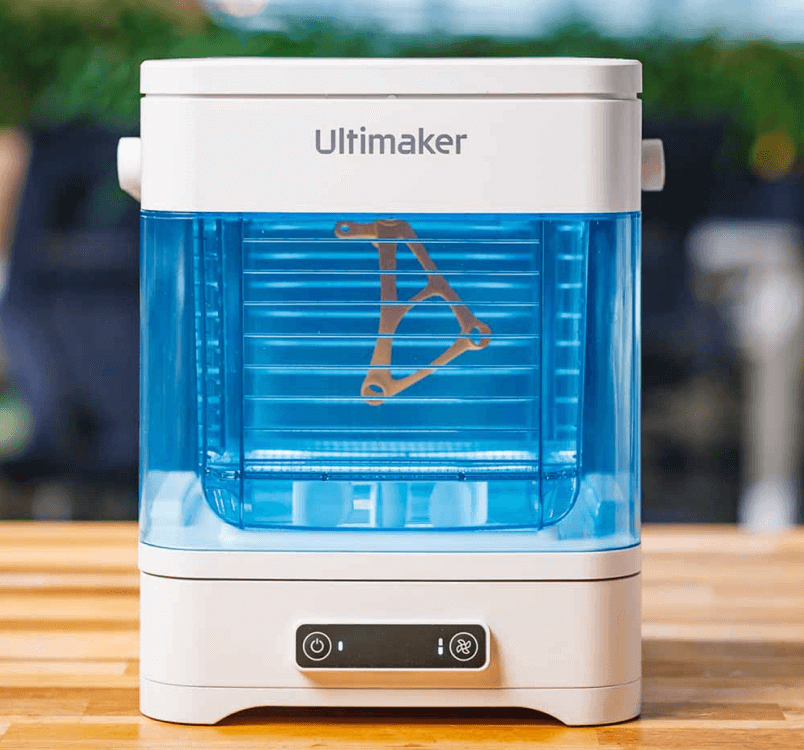

UltiMaker PVA Removal Station

Name: UltiMaker PVA Removal Station
Brand: UltiMaker
Price: 1794.99 AUD
Availability: InStock

Product form

UltiMaker PVA Removal Station

Make printing complex designs faster and easier. The UltiMaker PVA Removal Station dissolves support material quickly and effectively, keeping operator time to a minimum and increasing productivity.

$1,794.99 Incl. GST

Buying a full system? Request a bundled quote.

Request a Quote

Technical Articles

Product Data Sheet

Complete Your Dual-Material Workflow

Pair with the UltiMaker S6 to efficiently remove PVA supports and streamline post-processing.

UltiMaker S6 3D Printer

$14,975.00

Learn more

Key Features

• Keeps parts fully submerged
• Use with UltiMaker or 3rd-party PVA
• Less post-processing operator time
• Just add water. No chemicals. No mess

Fast & Effective PVA Removal

Produce complex parts and stunning visual prototypes quicker and more easily with the UltiMaker PVA Removal Station. Precision engineered with a magnetic rotor and adjustable speed settings just add water to dissolve PVA support material in a matter of hours. As part of UltiMaker's 3D printing platform this start-to-finish solution ensures faster design iterations with minimal operator time.

Less Time Waiting for Parts

The UltiMaker PVA Removal Station features a high-speed dissolving process driven by a magnetic rotor. Compared with motionless water in an improvised container this circulation removes PVA up to four times faster – even from hard-to-reach cavities of complex designs. So you have your parts ready as soon as possible.

Reduce Operator Time up to 80%

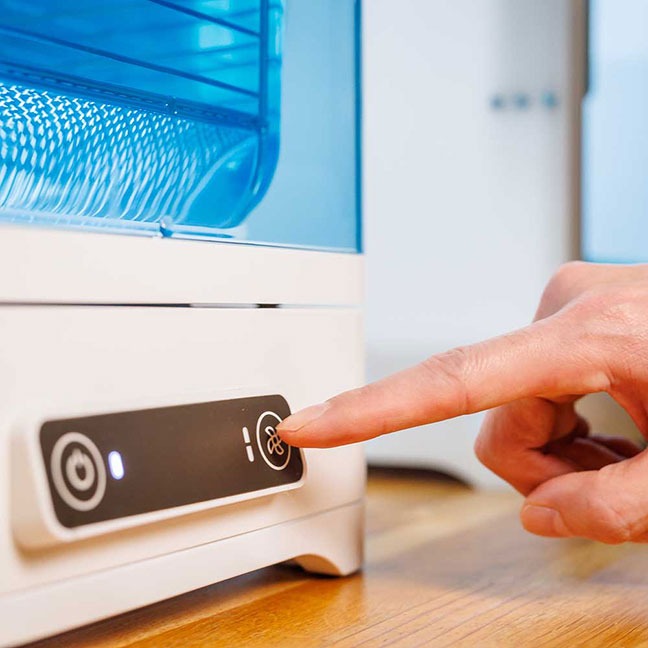

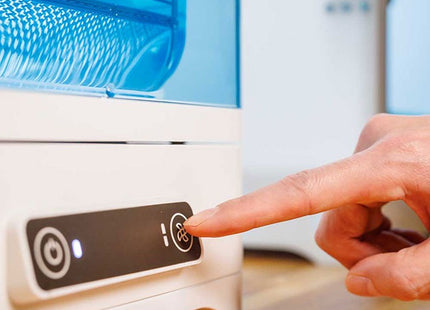

Work with less hassle no mess and complete peace of mind thanks to reliable simple and easily monitored PVA removal. Just press the start button leave it to do its job and continue working with confidence while waiting on a high-quality end result.

Properties

• Container volume: 13.7 litres (3.6 US gal)
• Maximum part size: W 200 x D 230 x H 165 mm (W 7.8 x D 9 x H 6.4 in)
• Supported materials: Optimised for: PLA and PVA. Also suitable for: PETG, Tough PLA, Nylon, or CPE in combination with PVA
(Also supports equivalent third-party materials)
• Supported solvents: Water
• Rotor speed: 225 RPM (normal), 100 RPM (low)
• Operating sound: < 50 dBA

Physical Dimensions

• Dimensions: W 303 x D 325 x H 374 mm (W 11.9 x H 12.8 x D 14.7 in)
• Dimensions with handle extended: W 303 x D 325 x H 528 mm (W 11.9 x D 12.8 x H 20.8 in)
• Net weight: 6.35 kg (14 lbs)
• Container weight (when empty): 4.2 kg (9.3 lbs)
• Shipping box dimensions: W 400 x D 400 x H 500 mm (W 15.7 x D 15.7 x H 19.7 in)
• Shipping weight: 8.5 kg (18.7 lbs)

Ambient Conditions

• Operating ambient temperature: 15 - 32 °C (59 - 90 °F)
• Non-operating temperature: 0 - 32 °C (32 - 90 °F)
• Relative humidity: 10 - 90% RH non-condensing

Electrical Requirements

• Voltage: 100 - 240 V AC
• Frequency: 50 - 60 Hz
• Power: 38 W

Service and Support

• Warranty period: 12 months
• Expert support: Market-leading technical support via email, phone, or from our global community is available to you in your language and timezone.
• Extended support: Online resources, extensive manuals, material technical and safety data sheets (in multiple languages), a detailed knowledge base, and much more.

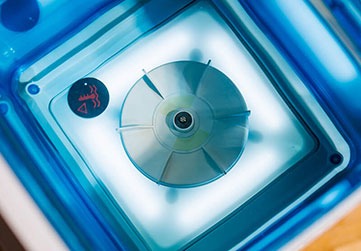

Rotor-powered Water Circulation

Choose 100 or 225 RPM circulation depending on the fragility of your part. Every two minutes, the rotor changes direction to push water evenly against the model.

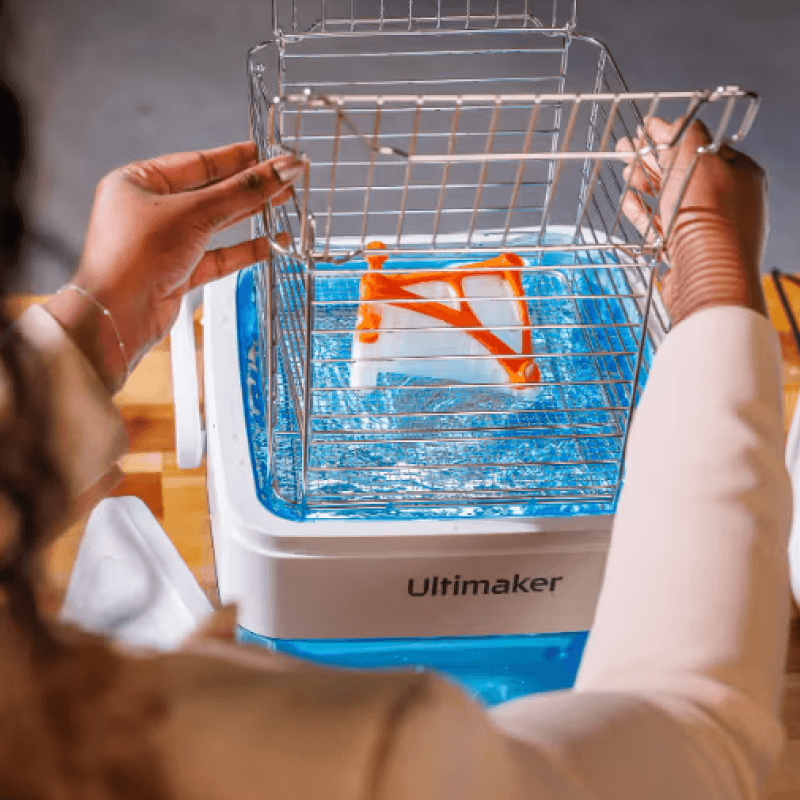

Prints Stay Safe and Submerged

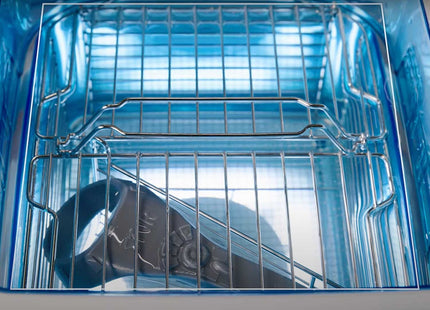

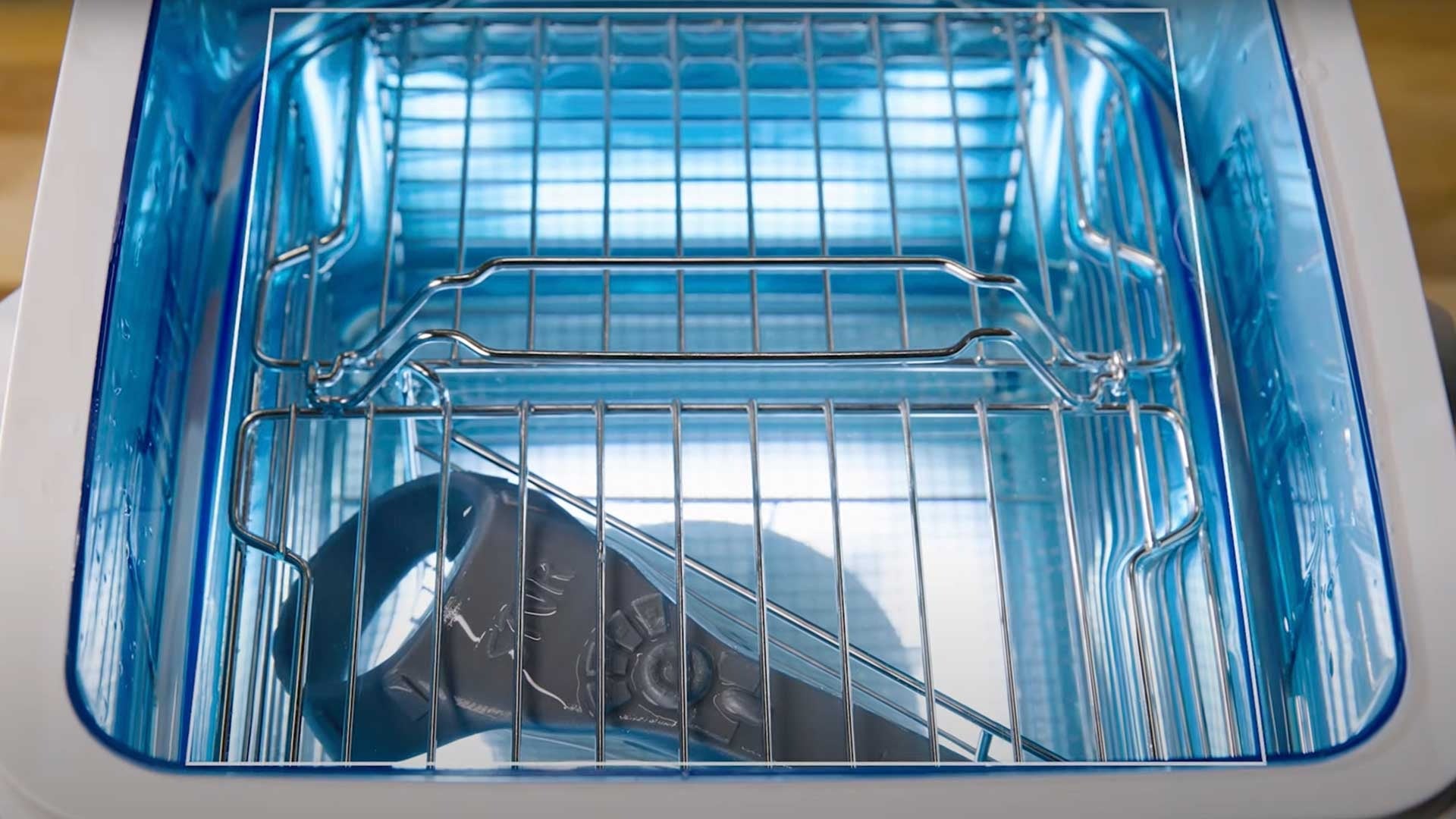

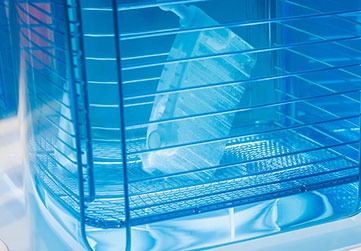

A rinsing basket keeps your print in place and completely submerged while dissolving, then lifts up for mess-free draining and print removal.

Easy to Monitor Progress

A transparent, illuminated container lets you easily follow the PVA removal process and see when your part is ready. Plus, a saturation indicator shows when to refresh the water.
