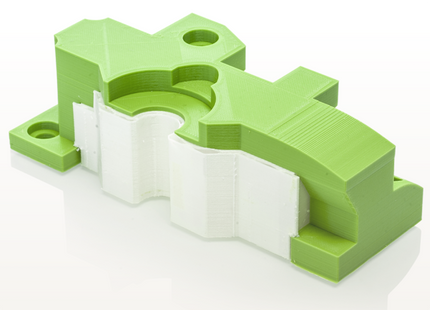

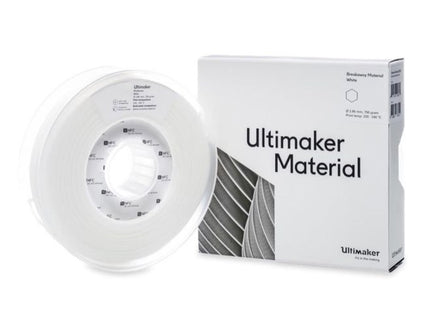

Ultimaker S Series Breakaway Support Material (White, 0.75kg)

Name: Ultimaker S Series Breakaway Support Material (White, 0.75kg)
Brand: UltiMaker
Price: 118.8 AUD

Product form

UltiMaker Breakaway support is easy and quick to remove. It leaves behind a smoother quality finish than other support materials, with no further post-processing needed.

$118.80 Incl. GST

Technical Articles

Need a Cleaner Surface Finish?

Upgrade to PVA for water-soluble support and complex, high-detail prints.

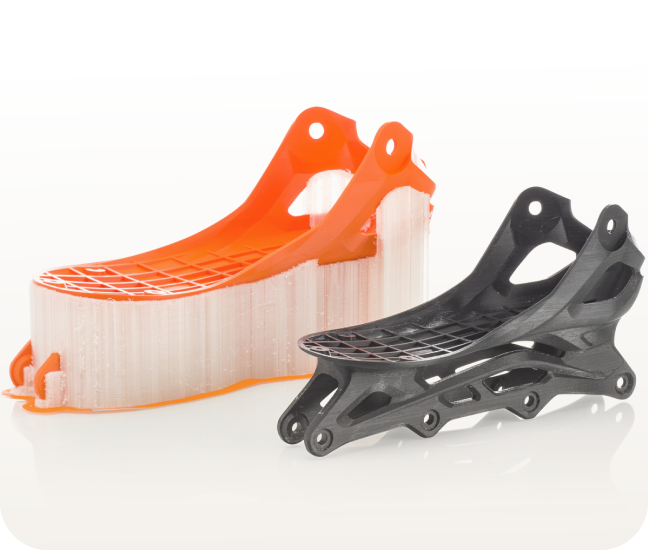

Ultimaker S Series PVA Support Material (2.85mm)

$169.99

Learn more

Key Features

Good bonding to a variety of build materials, robust support while still weak and ductile enough to remove from the model. Longer shelf life and less moisture sensitivity compared to water-soluble support materials.

Description

Ultimaker Breakaway is a support material for dual extrusion 3D printing. Breakaway supports can be quickly removed and do not need further post-processing to give a smooth finish to your 3D print. Designed for a hassle-free 3D printing experience, Breakaway provides good adhesion to PLA, PETG, Nylon and ABS-based filaments.

Ease of Use

Designed for a hassle-free 3D printing experience, breakaway support is quick to remove and does not need further post-processing for a quality finish on your 3D print.

NFC Chip

Ultimaker filament spools include an embedded NFC chip that allows supported printers and the Material Station to automatically recognise the material when loaded. The system reads the tag and applies the correct print settings in the printer and Cura simplifying setup, streamlining workflow and reducing errors.

Storage Environment

Supplied in a sealed, moisture-protected bag with desiccant included to help maintain material quality during transport and storage. Ultimaker advises keeping the filament in the original resealable bag with desiccant after opening to minimise moisture exposure and preserve performance.

Breakaway Material Properties

• Print Core: AA
• Diameter: 2.85 ± 0.05 mm
• Max roundness deviation: 0.10 mm
• Net weight: 0.75kg
• Filament length: ~96m

Thermal Properties

• Melt mass-flow rate (MFR): ISO 1133 (220 °C, 2.16 kg). 3-6 g / 10 min
• Heat deflection (HDT) at 0.455 MPa*: ISO 75-2 / B. -
• Vicat softening temperature*: ISO 306 / A120. -
• Glass transition: ISO 11357 (DSC, 10 °C / min) 59.7 °C
• Melting temperature: ISO 11357 (DSC, 10 °C / min) 151.8 °C

Design Freedom With More Materials

Breakaway allows you to print the overhangs and details you need, with materials not compatible with PVA. For example, it is an ideal support material for CPE or ABS.
