UltiMaker Air Manager

Name: UltiMaker Air Manager
Brand: UltiMaker
Price: 1794.99 AUD

Product form

UltiMaker Air Manager

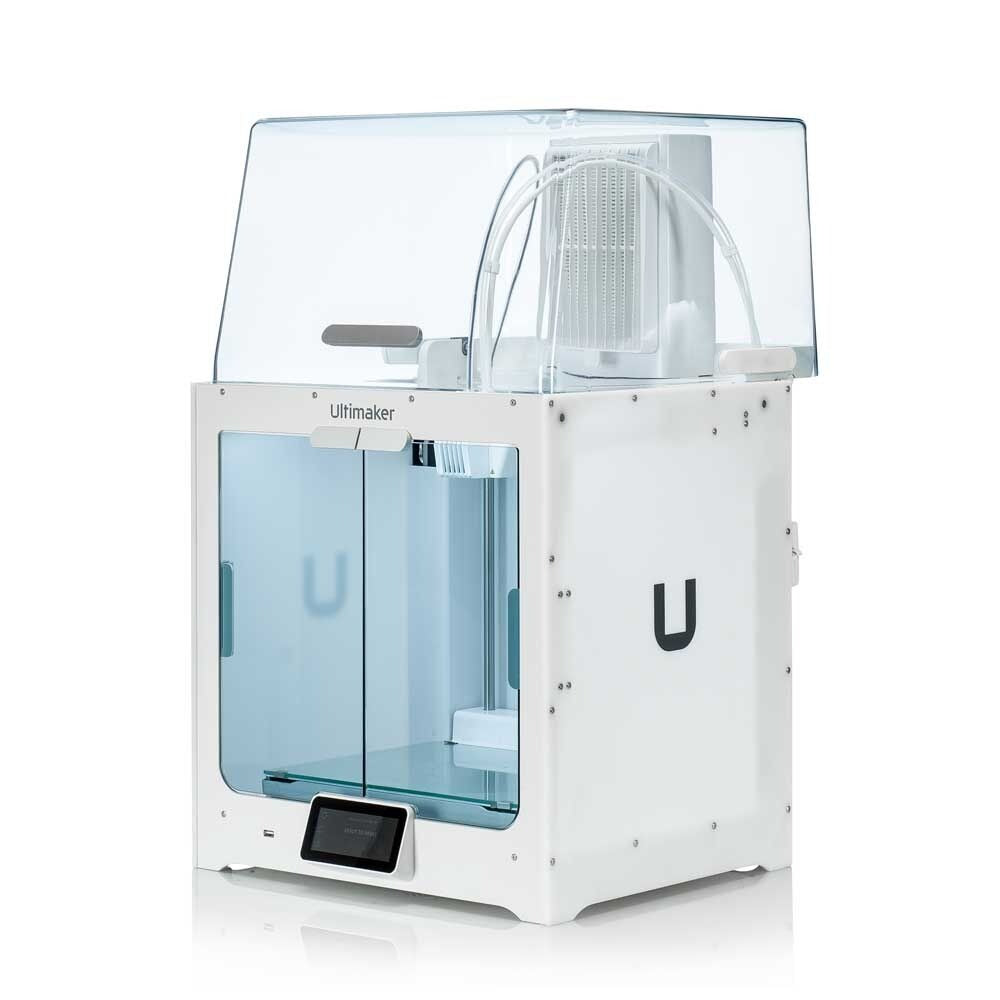

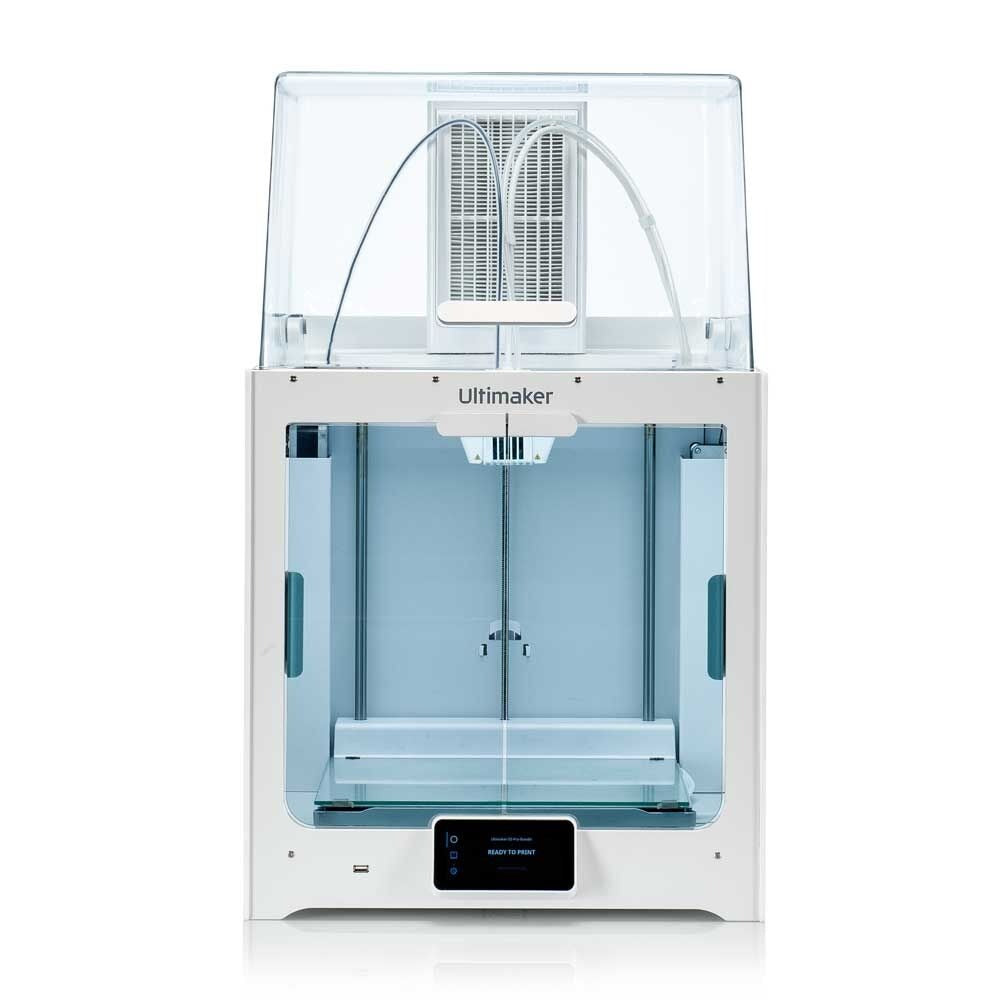

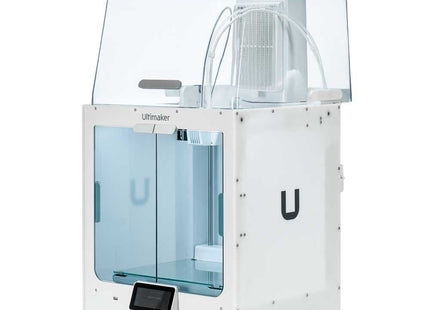

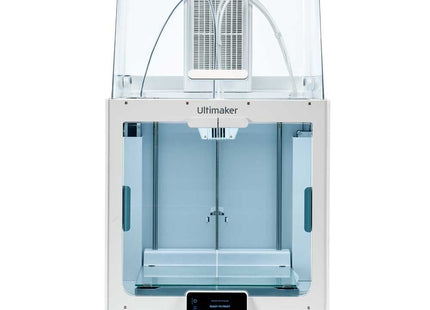

The UltiMaker S series Air Manager gives you more confidence and setup flexibility for your UltiMaker S5 or S6. Designed to increase user safety, it removes up to 95% of ultrafine particles and shields users from hot and moving components. The UltiMaker S7 and S8 have an integrated Air Manager, for the S5 and S6 it can be installed as an optional add-on.

$1,794.99 Incl. GST

Buying a full system? Request a bundled quote.

Request a Quote

Technical Articles

Product Data Sheet (Original S5 Specific)

Pair With the Ultimaker S6

Browse the S6 printer, designed specifically to be compatible with the Air Manager.

UltiMaker S6 3D Printer

$14,975.00

Learn more

Improved Air Quality

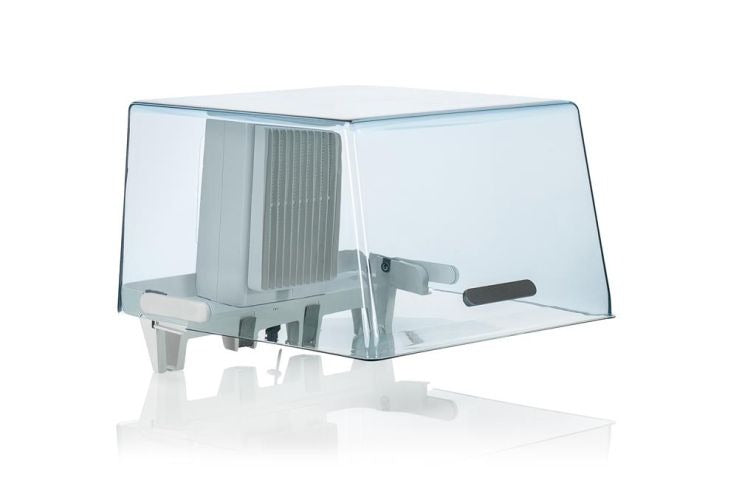

The UltiMaker Air Manager ensures a safer working environment providing a closed inside-out airflow. It filters up to 95% of all ultra-fine particles UFPs emitted during 3D printing and forms a safe physical barrier to the print area.

More Materials Less Hassle

Optimised software profiles precisely control filtering for every Ultimaker material and over 40 third-party filaments. So you can focus on creating the perfect 3D printed part with any material you choose without spending extra time configuring your printer.

Key Features

• Controlled extraction: Inside-out airflow optimised for filtering and print quality.
• Enhanced safety: Physical barrier prevents reaching inside the printer
• Optimised for your application: Detects material being used and adjusts airflow
• Easy setup: Printer detects when the Air Manager is connected
• Smart monitoring: Printer tracks filter usage and prompts replacement

Scalable Production Workflow

The Air Manager can be combined with the Material Station and printer for scalable end-to-end production. The Air Manager can also be installed on an UltiMaker S5 or S6 without a Material Station.

Technical Specifications

• Filter technology: EPA filter

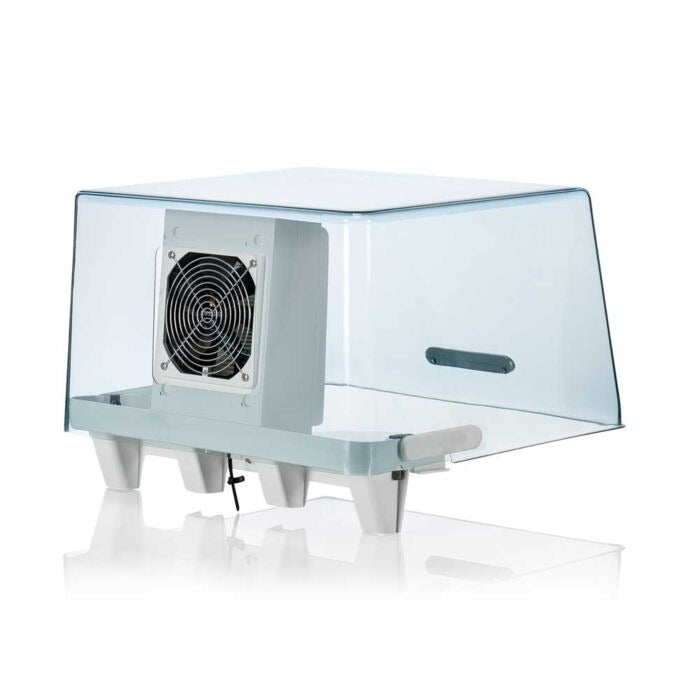

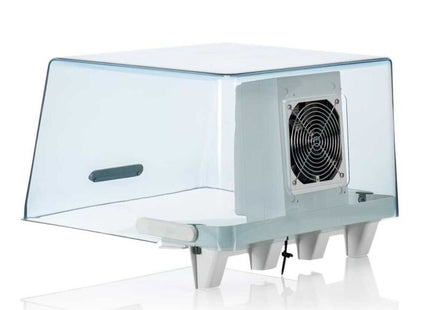

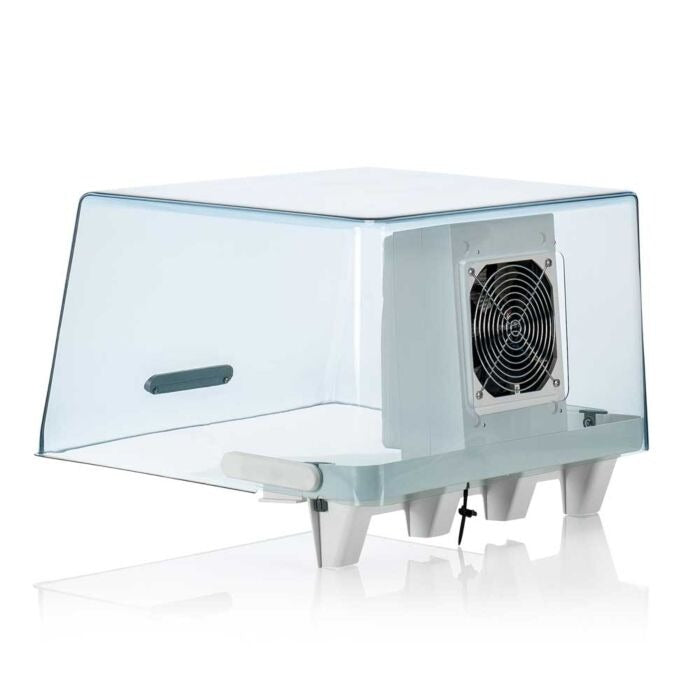

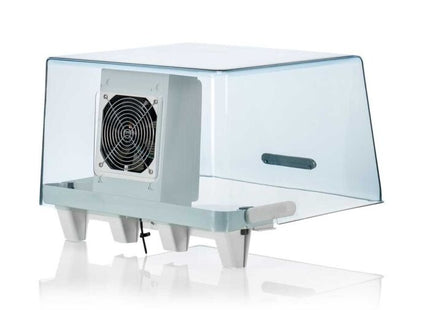

• Fan technology: Air extraction by low-noise brushless fan
• Air refresh rate: 1 - 50 m3/h (35 m3/h nominal rate for most materials at 23°C)
• Filter efficiency: Up to 95%
• Filter replacement: Recommended every 1,500 print hours (approx. 1 year)
• Operating sound: < 51 dBA (including Ultimaker S5)
• Connection (data and power): UMB connection (included)

Physical Dimensions

• Dimensions: 490 x 503 x 350 mm (19.3 x 19.8 x 13.8 in)
• Dimensions (including Ultimaker printer): Approximately 490 x 503 x 967 mm (19.3 x 19.8 x 38 in)
• Net weight: 3.6 kg (7.9 lbs)

Compatibility

• Compatible 3D printers: Originally designed for the Ultimaker S5, now compatible with the current model Ultimaker S6
• Compatible materials: Optimised for Ultimaker PLA, Tough PLA, ABS, Nylon, CPE, CPE+, PC, PP,
TPU 95A, PVA, Breakaway (Also supports third-party materials)

Software

Supplied Software:
• Ultimaker Cura, the free print preparation software
• Ultimaker Connect, the free printer management solution
• Ultimaker Cloud, enables remote printing

Warranty

• Warranty Period: 12 months

UFP Filtering

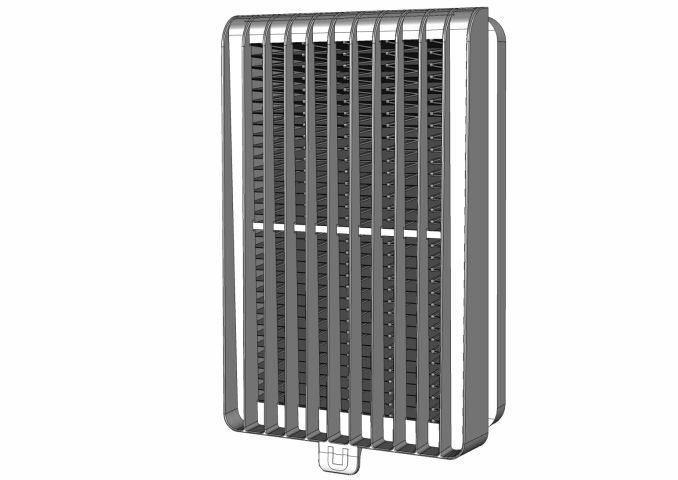

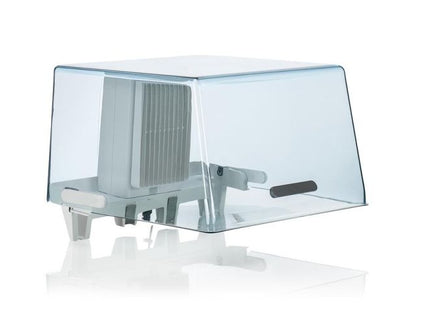

The Air Manager encloses the top of the printer and ensures an inside-out airflow. The air passes through an E10 filter, whereby Ultrafine Particles (UFPs) get trapped.

Optimised Material Compatibility

The Air Manager will automatically adjust its fan speed to optimise print quality per material.

Physical Barrier

The enclosed top prevents users from reaching into the machine during operation and ensures particles from the environment do not influence the print result.
